単一の壁の波形パイプマシンライン

PVC pipe extrusion production line for producing PVC conduits, water supply and drainage, and cable conduits

CPVC pipe molds can also be used to produce CPVC pipes. It consists of SJSZ series extruders, molds, vacuum tanks, spray cans, towing machines, actin machines, and stackers, and can produce PVC pipe mixed powder mud.

The Single Wall Corrugated Pipe Machine Line adopts specially designed scrapers and molds, which are easy to form. Even Paitiaio has a large capacity. our factory stable operation and simple operation

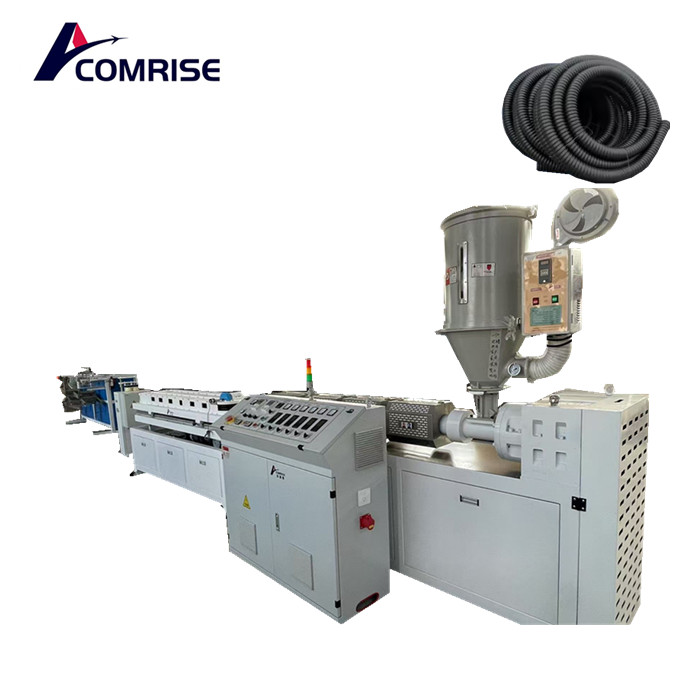

SJ-65/30 high-speed single wall corrugated pipe machine

1. Characteristics

The COMRISE plastic single-walled corrugated pipe production line is independently developed by our factory. By using gears to run the mold, the product achieves water circulation cooling, ensuring high-speed production and beautiful and smooth inner and outer pipe wall ripples. The final corrugated pipe is used for high-end car wires, disposable hookah pipes, and electrical conduits. The production speed of high-speed machines can reach 20-35 meters per minute.

Promote the production of your hookah and hookah hoses with our efficient single wall corrugated pipe manufacturing machine.

High speed conduit hose machine, electric conduit hose manufacturing equipment, PVC hose extruder, industrial hose production machine.

2. Process flow

Raw materials → Automatic feeding system → Single screw extruder → Mold head and mold → Forming machine → Cutting machine/winding machine

application

1. This Single Wall Corrugated Pipe Machine Line mainly uses PVC, PP, and PE as raw materials to produce small double wall corrugated pipes.

2. Through corresponding molds and shaping machines, the product can be uniformly smooth both internally and externally.

3. Cable conduit, washing machine drainage pipe, vacuum pipe, ventilation drainage pipe.

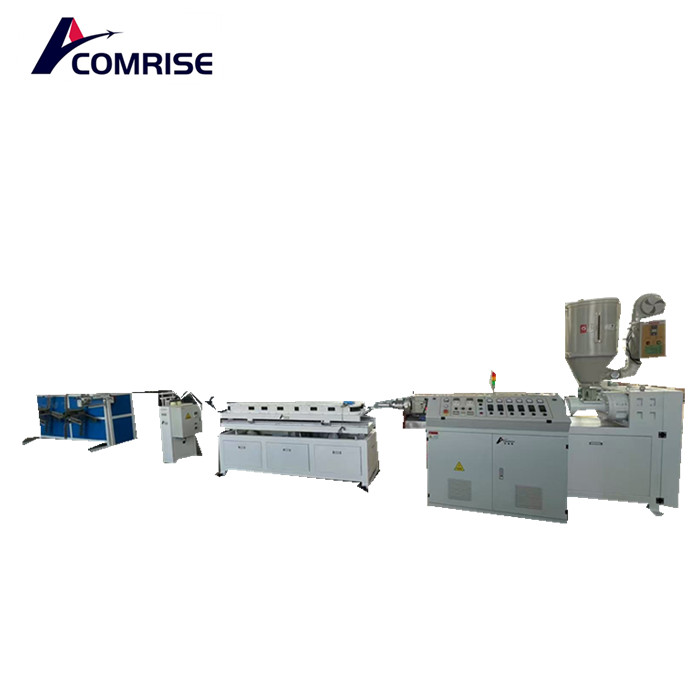

Single wall corrugated pipe machine line

This series of single wall steel wire conduit extrusion production lines can be used for continuous production of PVC, PE, PP, EVA corrugated pipes and PA corrugated pipes. Plastic single-walled corrugated pipes have the characteristics of high temperature resistance, corrosion resistance, wear resistance, high strength, and good flexibility.

Main advantage

1. Extruder: high-efficiency screw, hard gear surface gearbox, uniform raw material heating, good plasticization, high extrusion speed.

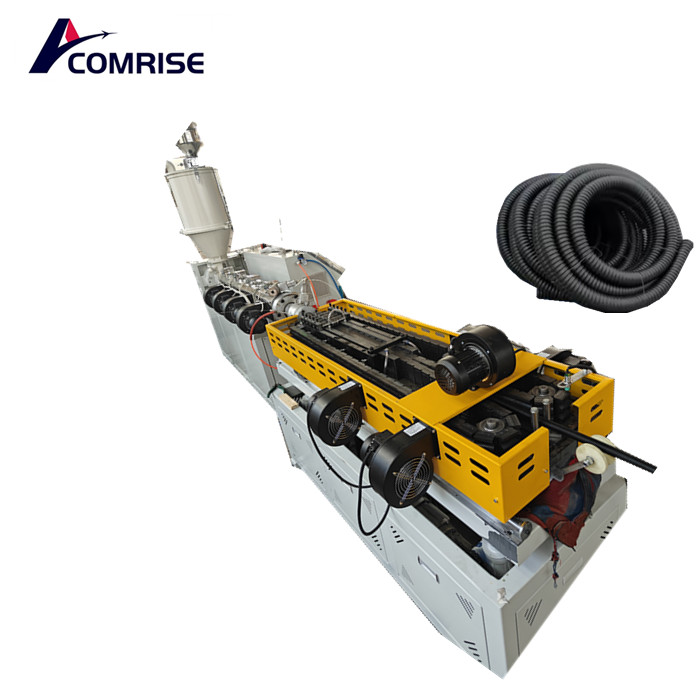

2. Ripple forming machine: Closed structure, the modules in the overall closed base are connected and run back and forth in the running tunnel.

3. Forming module: Made of hard steel, strictly using CNC precision machining materials to ensure the hardness and accuracy of the forming module. These modules are easy to modify

4. Winder: Single position or dual position with torque motor .

5. Electrical components: ABB frequency converter, Schneider contactor, RKC thermal controller, etc.

High density polyethylene polyvinyl chloride double wall corrugated pipe machine

The PVC PE double wall corrugated pipe machine/extrusion production line adopts extrusion molding technology, which has the characteristics of reliable quality and high efficiency.

Compared with other plastic pipe wall structures, double walled corrugated pipes have excellent wall properties

The structural design, with its low weight, achieves lower production costs and improves market competitiveness. It is widely used in various fields to replace concrete pipes and iron pipes because of its excellent features, such as easy connection and installation of accessories, and reliable quality
