HDPE pipe manufacturing machine, 20mm-110mm HDPE Pipe Extrusion Production Line, plastic pipe production line, polypropylene pipe we maunfacture

With this comrise factory PE production line, you can extrude high-quality large-diameter water and gas supply pipelines. The pipes produced on our production line have excellent rigidity and flexibility, resistance to creep deformation, and excellent thermal linkage. Large scale instrument HDPE pipes are beginning to play a very important role in urban water and gas supply systems.

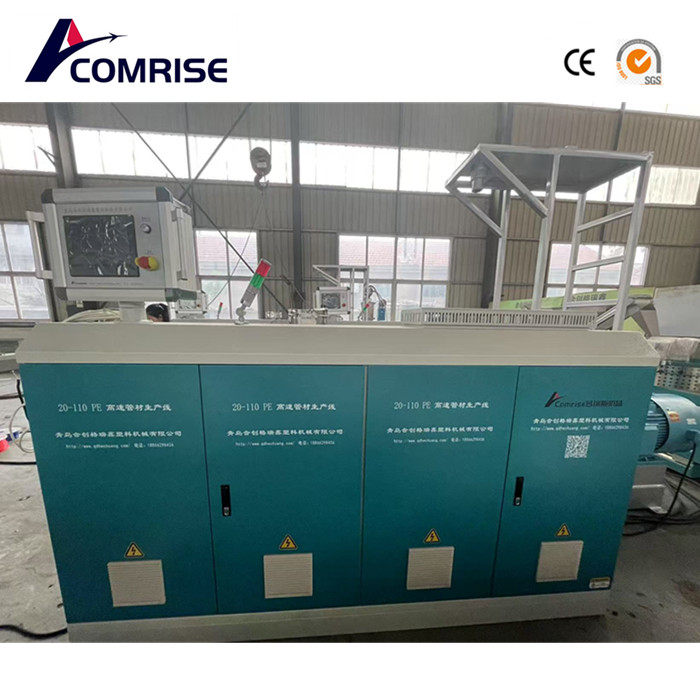

1. The HDPE Pipe Extrusion Production Line extruder is controlled by a frequency converter, which has the characteristics of easy adjustment, reliable operation, stable operation, and low energy consumption. Adopting an independent electrical control cabinet facilitates centralized control and operation of the entire machine.

2. The screw bolts and barrel of the extruder are made of high-quality nitride steel. Reasonable design, excellent plasticizing effect, and stable production.

3. The pipe forming adopts a central feeding mold and vacuum sizing. The cooling method combines spraying and leaching, resulting in high precision in pipe size and promising prospects.

4. Using a dedicated roller type traction machine, the pipe material is not easily deformed due to its plasticity.

5. The hose winding machine adopts torque motor control, which overcomes the disadvantage of tightening. Adopting an independent electrical control cabinet for easy independent control and operation during the production process.

When producing small-diameter pipes, replace the winding machine with a hard pipe coiling machine and equip the 20mm-110mm HDPE Pipe Extrusion Production Lineipe rack, and suitable extrusion molds and cutting devices should be equipped to produce hard pipes.China top factory

1. Process flow:

Plastic pellets → Vacuum feeding → Single screw extruder → Marking line co extrusion machine → Mold → Vacuum tank → Water cooling tank → Traction machine → Cutting machine → Stacker or automatic expansion and winding machine

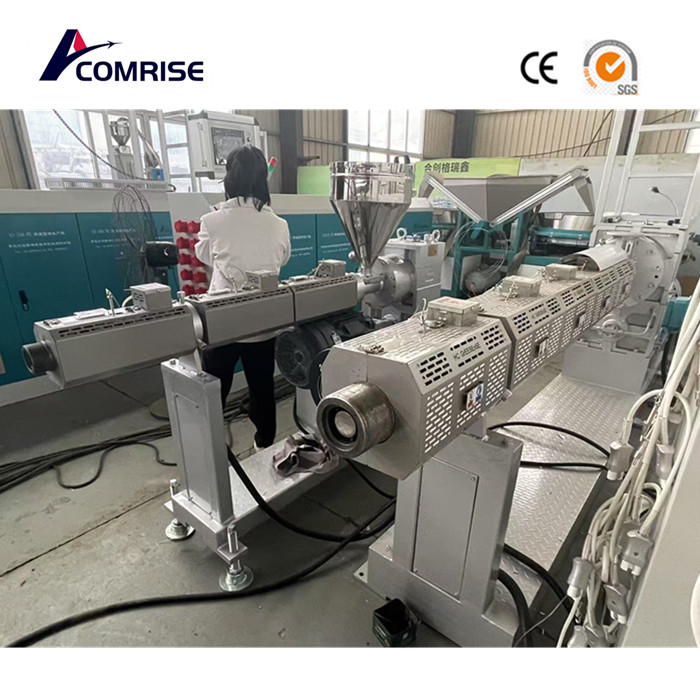

1. Single screw extruder and marking line co extrusion machine

2. Mold head. Due to different diameters, it can be designed according to customer requirements

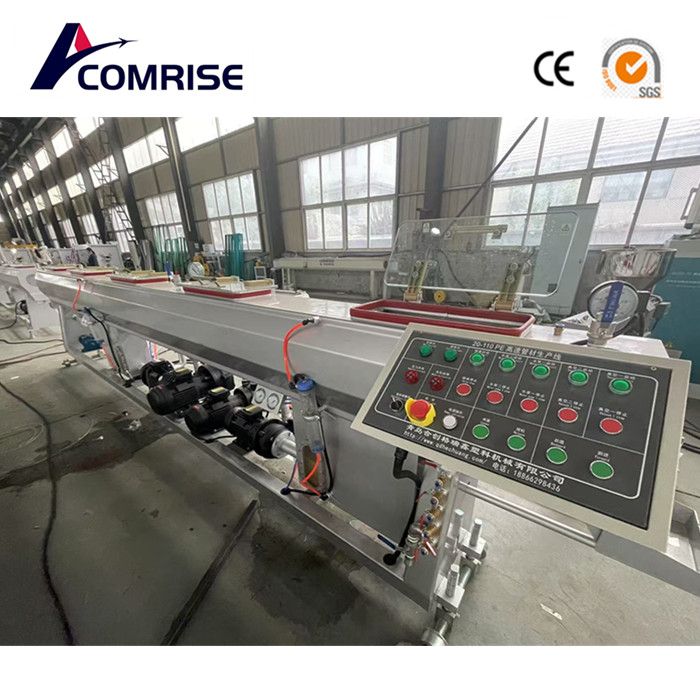

3. Vacuum and water-cooled tanks: Single or double vacuum chambers can be designed according to the diameter

Traction: Due to its diameter, double, three, four, six, and eight tracks can be designed

5. Cutting tools: Due to different diameters, they can be designed as saw blades or planetary blades

6. Stacker crane or automatic winding machine

 The 20mm-110mm plastic HDPE Pipe Extrusion Production Line is also very innovative. It uses a lot of technology to ensure that the pipes it manufactures have the highest quality. For example, there are sensors on the machine that can detect any issues during the pipeline manufacturing process. If there is a problem, the machine can automatically stop for immediate resolution. This ensures that the pipeline always has the best quality. Comrise china factory
